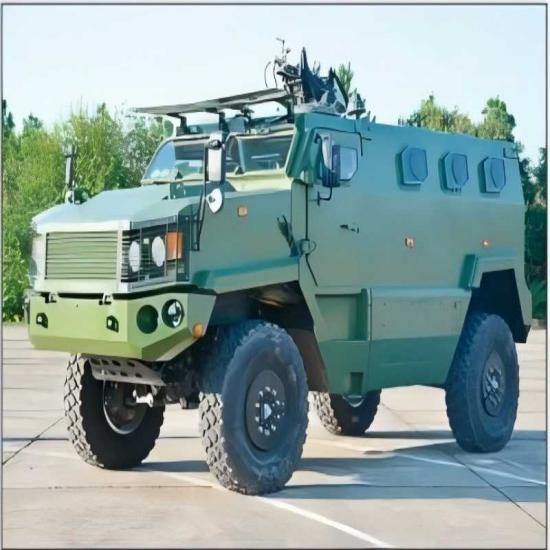

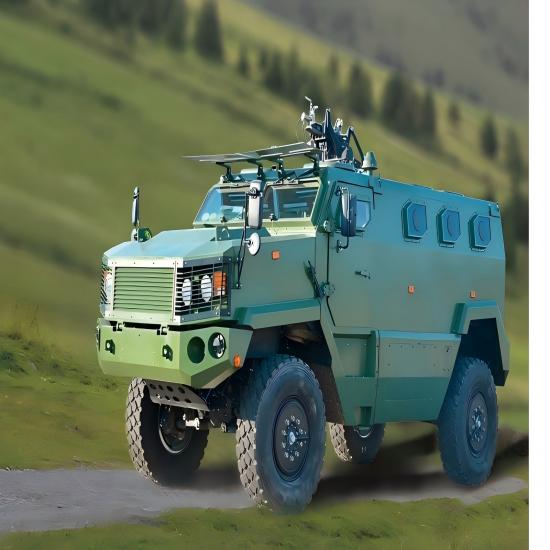

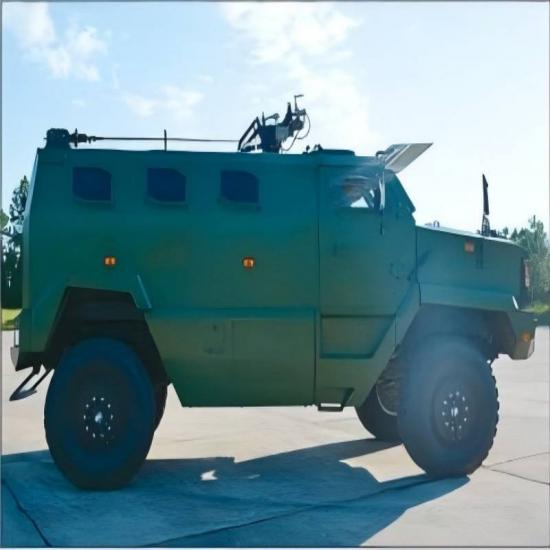

China Xinxing Middle-sized Protective Personnel Carrier
1. Maneuvering characteristics: adopt advanced and high maneuvering off-road chassis with domestic mature technology, suit for all territory and all regions.
2. Comprehensive protection performance: whole vehicle possess ballistic protection capability, guarantee the safety of crew members; modular protection components can be attached, ballistic protection can be upgrade to NATO 2-3 level, mine protection/IED can be upgrade to NATO 2 level.
3. Man-machine environment: adopt multi-point mounting technology and sound isolate and noise reduce technology, better perform in shock absorption and heat isolation and sound isolation; crew member get a wide sight and view through the transparent armor.
SPECIFICATIONS
Maneuvering characteristics: electric capstan, obstacle clearing device.
Weapon system: mechanical weapons station, 14.5mm, 12.7mm, 7.62mm, vehicle-mounted machine gun, acousto-optic weapon system, explosion-proof transmitter.
Protection: modular protection components.
Others: warm air system, glass heating system.
Driving form: 4 x 4
Crew member: 2+10
Curb weight (kg): 10300
Battle curb weight: 13300 kg
Maximum rated power: 258KW (2100r/min)
Maximum torque: 1500Nm
Minimum diameter of turning circle(m): ≤17
Side slope (%): ≥40
Acceleration time(S, 0-60km/h)：≤22
Minimum stable speed (km/h): ≤2.5
Maximum speed: ≥100km/h
Kilometer driving distance：≥700km
Vertical obstacle：≥550mm
Trench crossing：≥750mm
Fording：1200mm
Gradient(%)：≥60
DETAILS SHOW

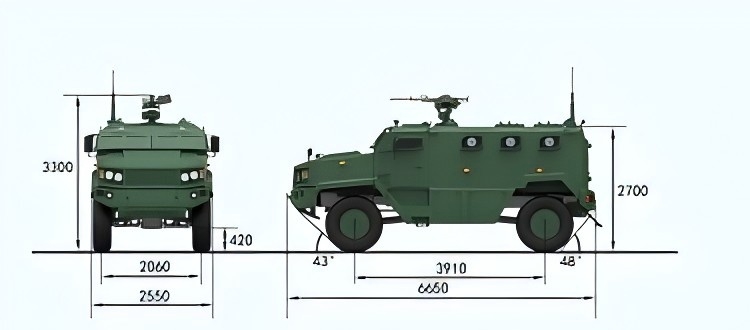

DIMENSION
